Multifunctional 3.5 M3 Self Loading Concrete Mixer Vehicle / Cement Mixer Truck

Product Categories
BILON HEAVY INDUSTRY (GUANGZHOU) CO.,LTD
Contact Now

Multifunctional 3.5 M3 Self Loading Concrete Mixer Vehicle / Cement Mixer Truck

Brand Name : Bilon

Certification : ISO,CCC,BV

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000 sets

Delivery Time : 30 days

Packaging Details : naked,waxing. concrete mixer truck is shipped by bulk,

Mixing Power : 85 kW

Motor Power : 2.2kw

Charging Capacity : 5300 L

Speed of Mixing Drum : 20r/min

Weight : 8100 kg

Outline Dimension : 7520 x 2600x3270mm

Contact Now

3.5 M3 Self Loading Concrete Mixer Truck Price

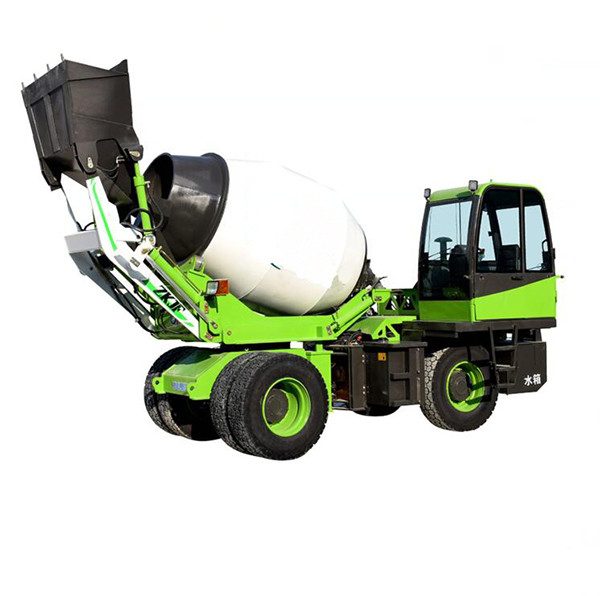

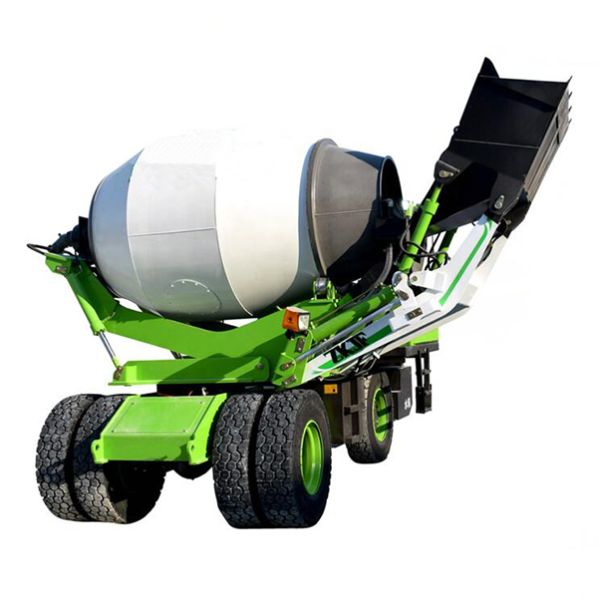

Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,85 kW Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing Drum could slew hydraulically up to ±90° (namely, turning left to 90° and turning right to 90°)for high discharge over 1.5 m in the front side of the vehicle.

Mixing Drum
Mixing Volume
3500 L
Geometric Volume
5300 L
Concrete Output
3500 L/ batch , 4 Batches/ hr
Inclination Angle
16°
Max. Slewing Angle
±90°
Rotating Speed
0~21 rpm
Body /Bottom Thickness
5 mm/8 mm(Q345B)
Overall Size
Φ1700x 3210 mm
Chute
Max. Slewing Angle
180°
Tilting Method
Mechanically
Length
650mm +1000 mm (2 Sections)
Engine
Brand
YUCHAI ( Cummins Optional)
Model
YCD4J22G
Rated Power/Speed
116 HP /2400 rpm
Max.Torque/ Speed
390 N.m/2800 rpm
Bore x Stroke
105 mm x125 mm
Displacement
4.33 L
Type
4-Cylinder,In-line,
Turbo Charged, Water-cooled
Emission Standard
Euro II
Hydraulic System
Reducer Model
HJ80-43
Hydraulic Pump Displacement
80/40 mL/r
Hydraulic Motor Displacement
56 cm3/rev
Water Supply System
Water Tank Volume
2 x 300 L
Water Supply Mode
Self-contained, Hydraulic
Driven water pump
Chassis
Structure
Integrated Structure
Drive Type
4 X 4X2
Transmission
2 Forward +2 Reverse Shift (Low+ High Speed)
Torque converter
YJ280 ( Split Type)
Gearbox Mode
Counter Shaft, Power-shift
Wheelbase
2687 mm
Tread
1950 mm
Loading Shovel Capacity
600 L
Brake Type
Air Brake
Tyre Size
16/70-22.5
Vehicle
Drum and Shovel Control
By Joystick
Driver's Cab
Air-conditioner Inside
Max. Drive Speed
30 km/h
Grade Ability
40 %
Mini Turning Radius
5300 mm
Max. Payload
8,400 kg
Operating Weight
8,100 kg
Overall Size
7520 x 2600x 3270 mm

Multifunctional 3.5 M3 Self Loading Concrete Mixer Vehicle / Cement Mixer TruckMultifunctional 3.5 M3 Self Loading Concrete Mixer Vehicle / Cement Mixer TruckMultifunctional 3.5 M3 Self Loading Concrete Mixer Vehicle / Cement Mixer TruckMultifunctional 3.5 M3 Self Loading Concrete Mixer Vehicle / Cement Mixer Truck
